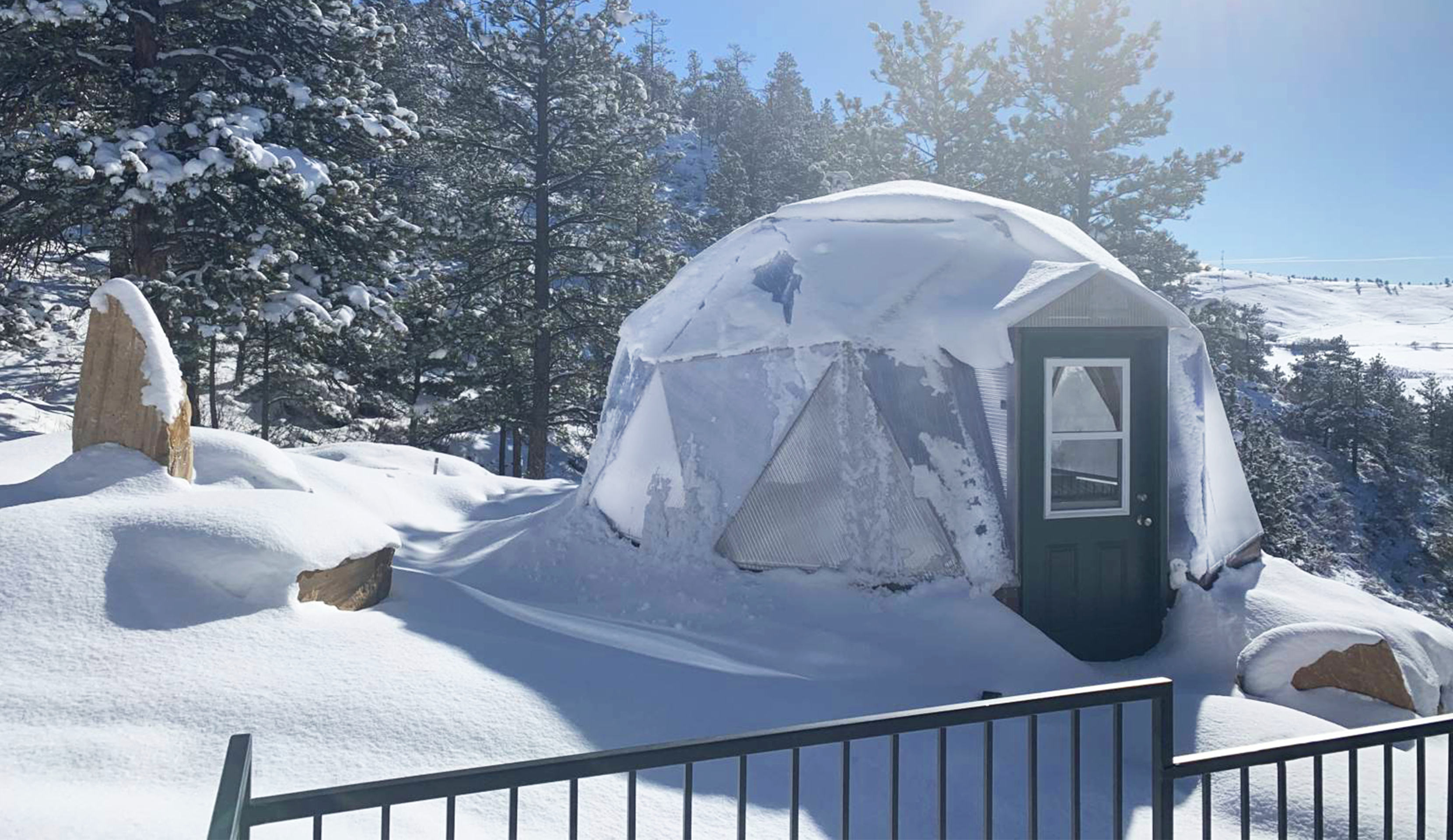

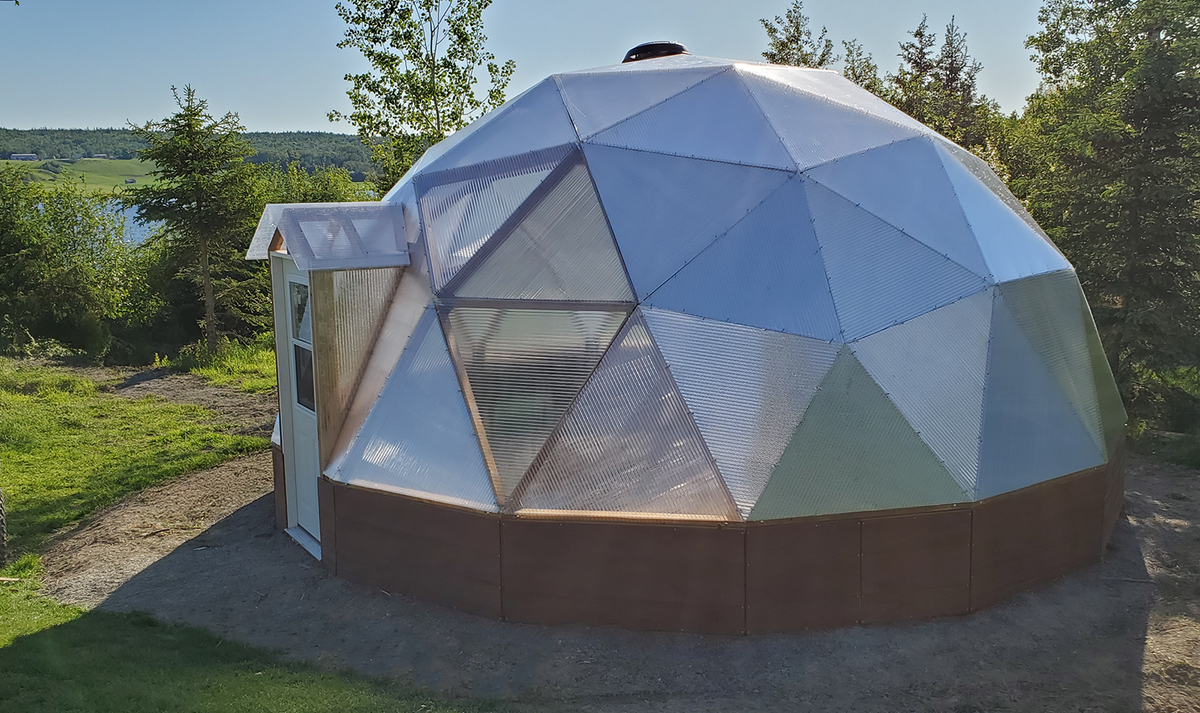

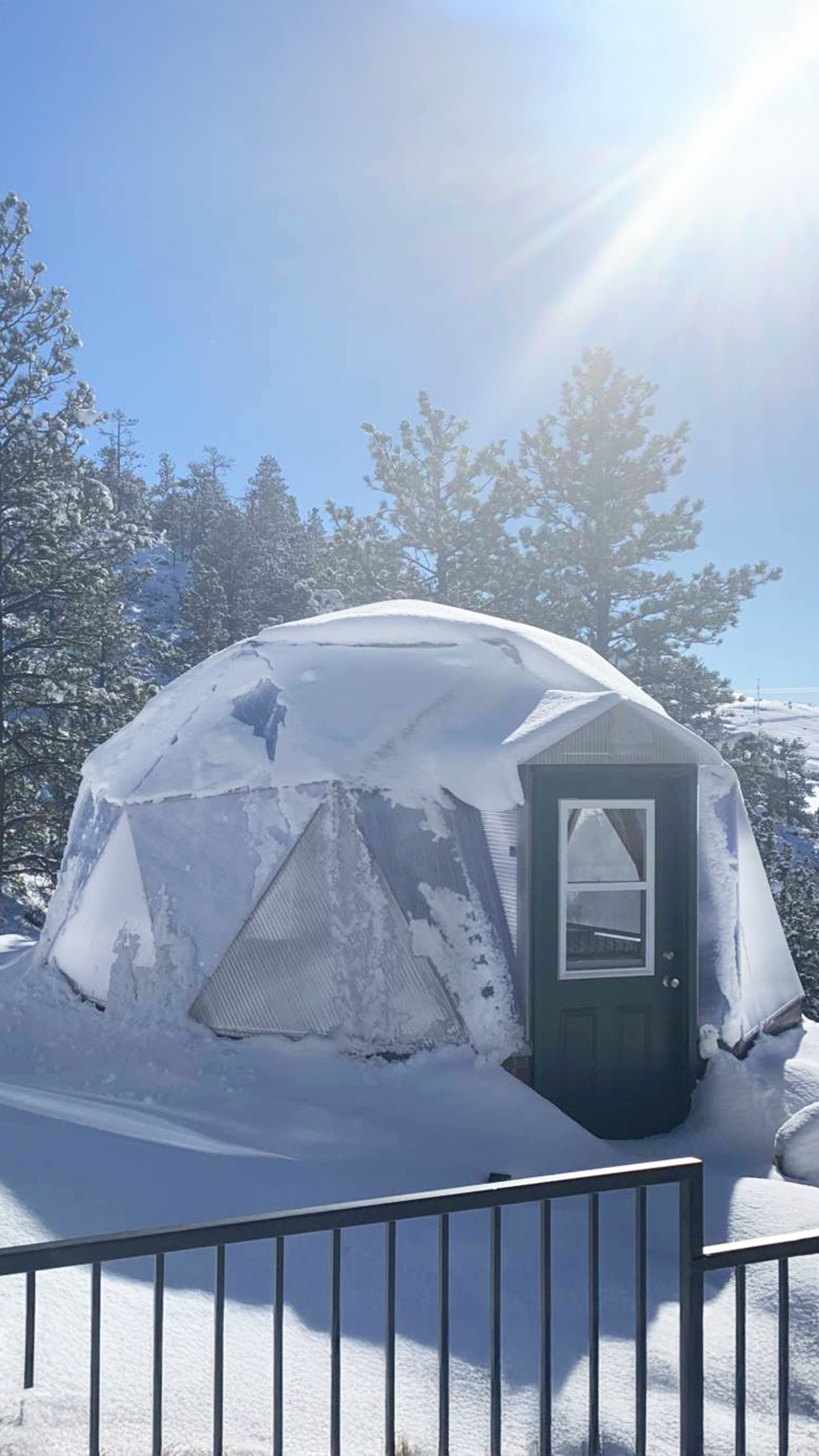

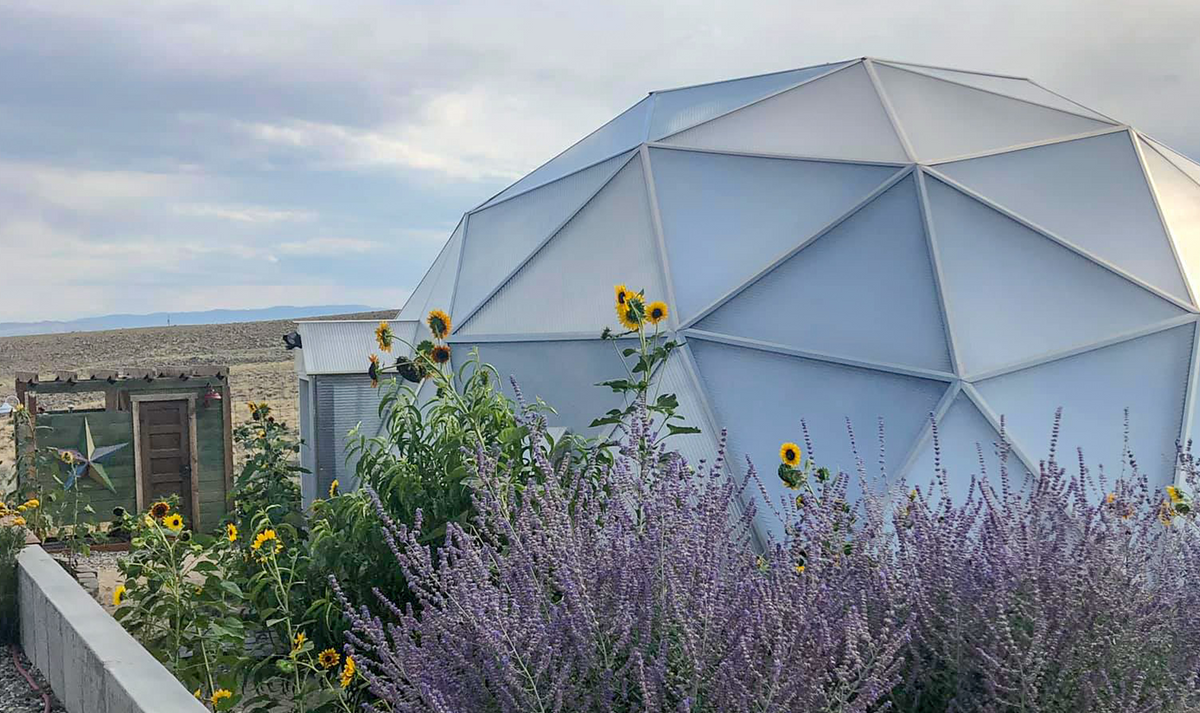

18-Foot Growing Dome

Growing Domes offer many advantages over the conventional box-shape and traditional greenhouses. Made from high-quality materials including eco-friendly 16mm polycarbonate panels, each component of your dome is precisely measured and cut for one of our six sizes. As striking as they appear, the true beauty of these domes is in their innovative design and expert engineering!

High wind stability: Dome geometry and reinforced framing resist lateral loads and turbulent gusts. Able to withstand gale-force winds, and known to endure even against certain hurricane storm conditions.

Snow‑load capable: Triangulated structure transfers weight efficiently to ground, protecting the shell and doorway.

Hail‑resistant skin: 16 mm multi‑wall panels cushion impact and maintain light diffusion if scuffed.

Passive thermal control: High-volume air circulation and solar gain help maintain stable interior conditions during cold snaps or power outages.

UNDERSOIL UNIT

The Undersoil Ventilation System (UVS) utilizes the consistent temperature of the soil, taps into the thermal mass, stores, and releases that thermal energy into the dome.

SOLAR-POWERED FAN SYSTEM

The UVS utilizes an open-loop system, circulating air with two fans at 75 CFM (cubic feet per minute) powered by an external solar panel.

REFLECTIVE INSULATION

The North wall insulation covers about 1/3 of the polycarbonate glazing panels on the inside of the Growing Dome® all year long. The insulation reflects light and radiant energy away from the greenhouse, which provides shade for the Above Ground Pond in the summer, keeping the greenhouse cool. In the winter months, the insulation reflects the light and radiant energy from the sun towards the above-ground pond, keeping the water in the pond and the ambient air temperature in the greenhouse warm.

ALUMINUM SHADE CLOTH

The aluminum shade cloth reduces the amount of sunlight and heat transmitted into the greenhouse. Most Growing Dome owners put it up between April – June and take it down between September – October. The shade cloth reduces the amount of summer sun rays by 50% without depriving the plants of too much light.

ALUMINUM BRACKETS AND HARDWARE

• All Growing Domes come with a full hardware kit for installation

• Marine-grade, and corrosion-resistant

DRIP EDGE FLASHING

• Protects the 24″ all-weather wood foundation wall from water damage, rot, and mildew

Each dome sits on a 24” all-weather foundation wall made of wood composite siding, insulated with R-10 insulation, and lined with galvanized metal flashing. It can be primed and custom-painted for a unique, one-of-a-kind look.

The foundational wall is anchored to one of three foundation options: gravel ring, concrete pier, or insulated concrete forms (ICF).

During the installation process, Growing Dome panels are closed with a sealing tape, and each precisely cut panel creates a closed shell around the dome.

One of the final steps in your kit's assembly is applying a thick tape provided to you across the seams of the exterior panels. This adhesive is the same material used in the aerospace industry to provide an airtight seal to aircraft.

Space - 165sqft

Height - 2.9m (9ft. 5in.)

Diameter - 4.47m

Value - $60/Sqft

Assembled in - ~35 Hours
*Total construction time based on a 3-person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Growing Dome Greenhouse kit includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, colour-coded struts and Sienna wood framing (cedar wood upgrade available)

• Stainless steel/Aluminum hardware

• Solar powered undersoil heating/cooling system with one 4” fan

• 1 venting attic fan + frame kit

• 1 venting solar shutter fan + frame kit

• Reflective north wall insulation

• Drip edge flashing

• Above-ground pond package

• 12’x12’ Aluminet shade cloth

• Snowshed entryway with 32” x 78” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $1,000

• Additional snowshed entryway + door (Unavailable at this size)

• Skylight - $650

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities

Space - 230sqft

Height - 3.05m (10ft. 8in.)

Diameter - 5.48m

Value - $61/Sqft

Assembled in - ~40 Hours
*Total construction time based on a 3 person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Kit Includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, colour-coded struts and Sienna wood framing (cedar wood upgrade available)

• 1 venting attic fan + frame kit

• 1 venting solar shutter fan + frame kit

• Solar powered undersoil heating/cooling system with 4” fan

• Reflective north wall insulation

• Drip edge flashing

• Above ground pond package

• 12’x12’ Aluminet shade cloth

• 1 snowshed entryway with 36” x 80” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $1,250

• Additional snowshed entryway + door (Unavailable at this size)

• Skylight - $700

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities

Space - 365sqft

Height - 3.06m (10ft. 10in.)

Diameter - 6.70m

Value - $52/Sqft

Assembled in - ~45 Hours
*Total construction time based on a 3 person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Kit Includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, colour-coded struts and Sienna wood framing (cedar wood upgrade available)

• Stainless steel/Aluminum hardware

• 2 solar venting shutter fans + frame kits

• 1 venting attic fan + frame kit

• Solar powered undersoil heating/cooling system with 4” fan

• Reflective north wall insulation

• Drip edge flashing

• Select materials for the Above Ground Pond

• 12’x12’ Aluminum shade cloth

• Snowshed entryway with 36” x 80” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $1,750

• Additional snowshed entryway + door (Unavailable at this dome size)

• Skylight - $800

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities

Space - 510sqft

Height - 3.83m (12ft. 7in.)

Diameter - 7.92m

Value - $48/Sqft

Assembled in - ~50 Hours
*Total construction time based on a 3 person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Kit Includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, colour-coded struts and Sienna wood framing (cedar wood upgrade available)

• Stainless steel/Aluminum hardware

• Solar powered undersoil heating/cooling system with 4” fans

• 2 solar venting shutter fans + frame kit

• 1 venting attic fan + frame kit

• Reflective north wall insulation

• Drip edge flashing

• Above ground pond package

• 12’x16’ Aluminum shade cloth

• Snowshed entryway with 36” x 80” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $2,850

• Additional snowshed entryway + door - $1,500

• Skylight - $900

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities

Space - 850 sqft

Height - 4.7m (15ft. 5in.)

Diameter - 10.05m

Value - $43/Sqft

Assembled in - ~60 Hours
*Total construction time based on a 3 person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Kit Includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, colour-coded struts and Sienna wood framing (cedar wood upgrade available)

• 2 venting attic fans + frame kits

• 3 solar venting shutter fans + frame kits

• Solar powered undersoil heating/cooling system with 4” fan

• Reflective north wall insulation

• Drip edge flashing

• Above ground pond package

• 10’x20’ Aluminum shade cloth

• Snowshed entryway with 36” x 80” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $3,500

• Additional snowshed entryway + door - $1,500

• Skylight - $1,250

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities

Space - 1375sqft

Height - 5.02m (16ft. 5in.)

Diameter - 12.8m

Value - $40/Sqft

Assembled in - ~80 Hours
*Total construction time based on a 3 person crew using online portal guides, using necessary equipment, and on a prepared foundation.

Kit Includes:

• Multi-wall (16mm) polycarbonate glazing panels - UV resistant & shatter-proof

• A full set of pre-cut, color-coded struts and framing plus all hardware

• 3 Electric attic fans + frame kits

• 3 Solar Shutter fans + frame kits

• 1 Solar powered undersoil heating/cooling system with two 4” fans

• Reflective north wall insulation

• Drip edge flashing

• Select materials for the Above Ground Pond

• Aluminum shade cloth

• 1 snowshed entryway with 36” x 80” door & window

• 24” foundation wall with structural siding

• Additional parts and components

Upgrades available:

• Western Red Cedar upgrade - $5,575

• Additional snowshed entryway + door - $1,500

• Skylight - $1,500

• Airlock entryway vestibule - $2,500
(Pressure treated wood)

• Airlock entryway vestibule - $3,000
(Western Red Cedar)

Warranty:

• 10-years for panels

• 5-years for framing

Support:

• Full access to online portal

• Ongoing access to Arctic Acres staff, licensed affiliates, and social media communities
